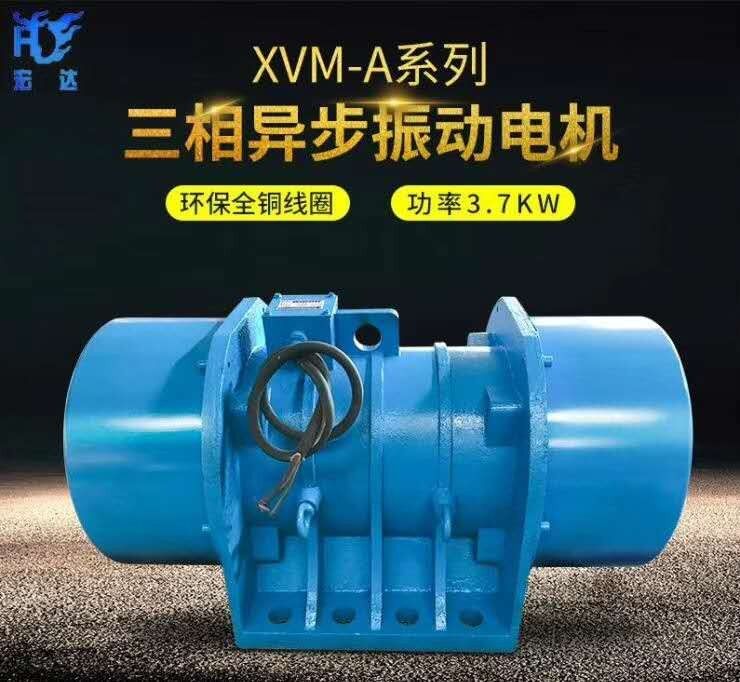

XVM-A系列振動電機是在雙軸伸的轉子軸兩端各安裝一組可調偏心塊，利用偏心塊旋轉產生的離心力得到激振力。振動電機的激振力大、能耗小、噪聲低、壽命長。它使用于料倉、料斗、溜槽的倉壁振動，還是自同步直線振動篩、振動給料機、振動輸送機等各種振動機械的激振源，是冶金、礦山、煤炭、建材、化工等部門的理想設備，有廣泛的應用范圍。
相關技術參數
1、額定電壓：380V
2、額定頻率：50HZ
3、防護等級：IP55
4、允許環境溫度：-20℃--40℃
5、絕緣等級：B級
6、工 作 制：連續
|
型號
|
振次r.p.m
|
最大激振力C.F.
|
額定功率
|
額定電流
AMP |
功率因數
cos f |
效率
h% |
起動電流倍數
Ia/In |
重量
wight |
圖號
|
外型及安裝尺寸
Dimension(mm)
|
緊固螺栓
|
|||||||||||
|
A
|
B
|
C
|
D
|
E
|
F
|
fG
|
H
|
J
|
K
|
M
|
N
|
|||||||||||
|
[N]
|
[kw]
|
[kg]
|
||||||||||||||||||||
|
XVM-A0.7-2
|
2870 |
700
|
0.15
|
0.38
|
0.86
|
70
|
3.8
|
12
|
A
|
265
|
95
|
90
|
130
|
130
|
160
|
11
|
70
|
160
|
15
|
40
|
135
|
M10
|
|
XVM-A1.5-2
|
1500
|
0.15
|
0.38
|
0.86
|
70
|
3.8
|
14
|
A
|
265
|
95
|
90
|
130
|
130
|
160
|
11
|
70
|
160
|
15
|
40
|
135
|
M10
|
|
|
XVM-A2.5-2
|
2500
|
0.25
|
0.58
|
0.86
|
76
|
4.6
|
20
|
A
|
310
|
143
|
100
|
140
|
150
|
170
|
13
|
80
|
185
|
16
|
45
|
172
|
M12
|
|
|
XVM-A 5-2
|
5000
|
0.40
|
1.01
|
0.83
|
72
|
4.8
|
32
|
A
|
342
|
173
|
120
|
150
|
180
|
200
|
18
|
100
|
245
|
20
|
54
|
204
|
M16
|
|
|
XVM-A 8-2
|
8000
|
0.75
|
1.76
|
0.88
|
74
|
6.3
|
48
|
A
|
390
|
192
|
140
|
170
|
210
|
220
|
18
|
110
|
270
|
20
|
60
|
224
|
M16
|
|
|
XVM-A 16-2
|
16000
|
1.50
|
3.59
|
0.86
|
74
|
5.6
|
70
|
B
|
450
|
250
|
140
|
200
|
220
|
250
|
18
|
140
|
300
|
22
|
60
|
282
|
M16
|
|
|
XVM-A 20-2
|
20000
|
1.80
|
4.24
|
0.90
|
71
|
4.0
|
96
|
C
|
560
|
285
|
83
|
230
|
270
|
280
|
22
|
157
|
335
|
25
|
75
|
320
|
M20
|
|
|
XVM-A 30-2
|
30000
|
2.00
|
4.92
|
0.91
|
68
|
4.9
|
158
|
C
|
610
|
320
|
105
|
248
|
295
|
310
|
22
|
172
|
365
|
28
|
75
|
360
|
M20
|
|
|
XVM-A 45-2
|
45000
|
3.00
|
7.00
|
0.90
|
72
|
6.5
|
196
|
C
|
640
|
353
|
118
|
280
|
340
|
340
|
26
|
190
|
406
|
28
|
85
|
390
|
M24
|
|
|
XVM-A 1.2-4
|
1460
|
1200
|
0.07
|
0.30
|
0.61
|
60
|
3.0
|
16
|
A
|
265
|
95
|
90
|
130
|
130
|
160
|
11
|
70
|
160
|
15
|
40
|
135
|
M10
|
|
XVM-A 2.5-4
|
2500
|
0.10
|
0.32
|
0.69
|
66
|
4.6
|
24
|
A
|
310
|
143
|
100
|
140
|
150
|
170
|
13
|
80
|
185
|
16
|
45
|
172
|
M12
|
|
|
XVM-A 5-4
|
5000
|
0.20
|
0.65
|
0.67
|
70
|
5.4
|
39
|
A
|
378
|
173
|
120
|
150
|
180
|
200
|
18
|
100
|
245
|
20
|
54
|
204
|
M16
|
|
|
XVM-A 8-4
|
8000
|
0.40
|
1.14
|
0.72
|
73
|
6.2
|
56
|
A
|
410
|
192
|
140
|
170
|
210
|
220
|
18
|
110
|
270
|
20
|
60
|
224
|
M16
|
|
|
XVM-A 16-4
|
16000
|
0.75
|
1.91
|
0.86
|
69
|
4.1
|
78
|
B
|
450
|
250
|
140
|
200
|
220
|
250
|
18
|
140
|
300
|
22
|
60
|
282
|
M16
|
|
|
XVM-A 25-4
|
25000
|
1.50
|
3.72
|
0.78
|
76
|
6.9
|
112
|
C
|
560
|
285
|
83
|
230
|
270
|
280
|
22
|
157
|
335
|
25
|
75
|
320
|
M20
|
|
|
XVM-A 32-4
|
32000
|
2.00
|
4.69
|
0.86
|
75
|
4.6
|
165
|
C
|
610
|
320
|
105
|
248
|
295
|
310
|
22
|
172
|
365
|
28
|
75
|
360
|
M20
|
|
|
XVM-A40-4
|
40000
|
2.20
|
5.06
|
0.84
|
74
|
4.5
|
180
|
C
|
610
|
320
|
105
|
248
|
295
|
310
|
22
|
172
|
365
|
28
|
75
|
360
|
M20
|
|
|
XVM-A50-4
|
50000
|
2.50
|
6.25
|
0.83
|
73
|
6.1
|
218
|
C
|
640
|
353
|
118
|
280
|
340
|
340
|
26
|
190
|
406
|
28
|
85
|
390
|
M24
|
|
|
XVM-A 75-4
|
75000
|
4.00
|
10.14
|
0.82
|
74
|
6.6
|
275
|
C
|
720
|
373
|
120
|
320
|
370
|
400
|
32
|
200
|
420
|
30
|
102
|
410
|
M30
|
|
|
XVM-A100-4
|
100000
|
6.00
|
14.60
|
0.86
|
73
|
6.6
|
440
|
C
|
760
|
420
|
140
|
380
|
420
|
460
|
32
|
225
|
460
|
32
|
120
|
470
|
M30
|
|
|
XVM-A120-4
|
120000
|
8.00
|
19.40
|
0.83
|
76
|
7.5
|
510
|
C
|
790
|
420
|
140
|
440
|
420
|
520
|
38
|
225
|
480
|
35
|
120
|
470
|
M36
|
|
|
XVM-A140-4
|
140000
|
10.00
|
24.16
|
0.82
|
75
|
7.1
|
560
|
D
|
910
|
480
|
118
|
460
|
490
|
550
|
38
|
260
|
520
|
|
120
|
550
|
M36
|
|
|
XVM-A160-4
|
160000
|
10.00
|
24.16
|
0.82
|
75
|
7.1
|
610
|
D
|
910
|
480
|
118
|
460
|
490
|
550
|
38
|
260
|
520
|
38
|
120
|
550
|
M36
|
|
|
XVM-A2.5-6
|
980 |
2500
|
0.20
|
0.70
|
0.60
|
71
|
4.3
|
42
|
A
|
378
|
173
|
120
|
150
|
180
|
200
|
18
|
100
|
245
|
20
|
54
|
204
|
M16
|
|
XVM-A 5-6
|
5000
|
0.40
|
1.23
|
0.67
|
74
|
4.1
|
55
|
A
|
438
|
192
|
140
|
170
|
210
|
220
|
18
|
110
|
270
|
20
|
60
|
224
|
M16
|
|
|
XVM-A 8-6
|
8000
|
0.55
|
1.68
|
0.66
|
75
|
4.3
|
69
|
B
|
450
|
250
|
140
|
170
|
220
|
220
|
18
|
140
|
300
|
20
|
60
|
282
|
M16
|
|
|
XVM-A10-6
|
10000
|
0.75
|
2.11
|
0.71
|
76
|
5.1
|
76
|
B
|
450
|
250
|
140
|
200
|
220
|
250
|
18
|
140
|
300
|
22
|
60
|
282
|
M16
|
|
|
XVM-A16-6
|
16000
|
1.10
|
3.03
|
0.71
|
78
|
5.6
|
96
|
B
|
530
|
250
|
140
|
200
|
220
|
250
|
18
|
140
|
300
|
22
|
60
|
282
|
M16
|
|
|
XVM-A20-6
|
20000
|
1.50
|
3.77
|
0.79
|
77
|
4.3
|
120
|
C
|
560
|
285
|
83
|
230
|
270
|
280
|
22
|
157
|
335
|
25
|
75
|
320
|
M20
|
|
|
XVM-A26-6
|
26000
|
1.90
|
4.80
|
0.72
|
83
|
6.8
|
156
|
C
|
610
|
320
|
105
|
248
|
295
|
310
|
22
|
172
|
365
|
28
|
75
|
360
|
M20
|
|
|
XVM-A30-6
|
30000
|
2.20
|
5.47
|
0.78
|
78
|
5.4
|
170
|
C
|
610
|
320
|
105
|
248
|
295
|
310
|
22
|
172
|
365
|
28
|
75
|
